Sockets

1/2" Sockets (Super lock)
1/4"DR. 3/8"DR. 1/2DR.

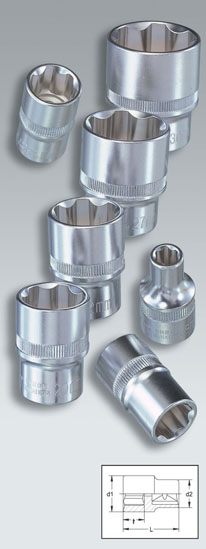

1/2" Sockets (Super lock) Hexagon
Item Nr. mm d1
mm		 d2
mm		 t min.
mm		 L
mm		 PC
g
514608 8 13.2 21.8 12 38 47
514609 9 13.9 21.8 12 38 47
514610 10 15.0 21.8 12 38 49
514611 11 16.3 21.8 12 38 50
514612 12 17.6 21.8 12 38 50
514613 13 18.8 21.8 12 38 51
514614 14 20.4 21.8 12 38 53
514615 15 21.6 20.7 12 38 54
514616 16 22.9 21.5 12 38 61
514617 17 24.0 22.0 12 38 68
514618 18 25.4 23.0 12 38 85
514619 19 26.0 23.0 14 38 73
514620 20 27.9 24.0 14 38 86
514621 21 28.0 25.0 14 38 82
514622 22 30.0 26.0 14 40 106
514623 23 31.6 27.0 14 40 125
514624 24 32.0 28.0 16 42 121
514625 25 34.0 30.0 16 42 150
514626 26 35.4 30.0 16 42 170
514627 27 36.0 30.0 18 43 168
514628 28 37.9 32.0 18 43 193
514629 29 38.0 32.0 20 43 205
514630 30 40.0 34.0 22 46 225
514631 31 42.0 36.0 22 46 250
514632 32 42.0 36.0 22 46 255

1/2" Deep

Item Nr. mm d1
mm		 d2
mm		 t min.
mm		 L
mm		 PC
g
584608 8 13.2 22.0 12 77 88
584609 9 13.9 22.0 12 77 91
584610 10 15.0 22.0 12 77 96
584611 11 16.3 22.0 12 77 101
584612 12 17.6 22.0 12 77 107
584613 13 18.8 22.0 12 77 109
584614 14 20.4 22.0 15 77 112
584615 15 21.6 20.7 15 77 109
584616 16 22.9 21.5 15 77 112
584617 17 24.0 22.0 15 77 133
584618 18 25.4 23.0 18 77 179
584619 19 26.0 23.0 18 77 157
584620 20 27.9 24.0 18 77 210
584621 21 28.0 25.0 18 77 222
584622 22 30.0 26.0 21 77 227
584623 23 31.6 27.0 21 77 273
584624 24 32.0 28.0 24 77 255
584625 25 34.0 30.0 24 77 315
584626 26 35.4 30.0 24 77 310
584627 27 36.0 30.0 27 77 352
584628 28 37.9 32.0 27 77 351
584629 29 38.0 32.0 27 77 331
584630 30 40.0 34.0 30 77 373
584631 31 41.0 36.0 32 77 390
584632 32 42.0 36.0 33 77 420
